CYBERSTARS - Quadruped robot CYBER 1
CYBERSTARS - Quadruped robot CYBER 1

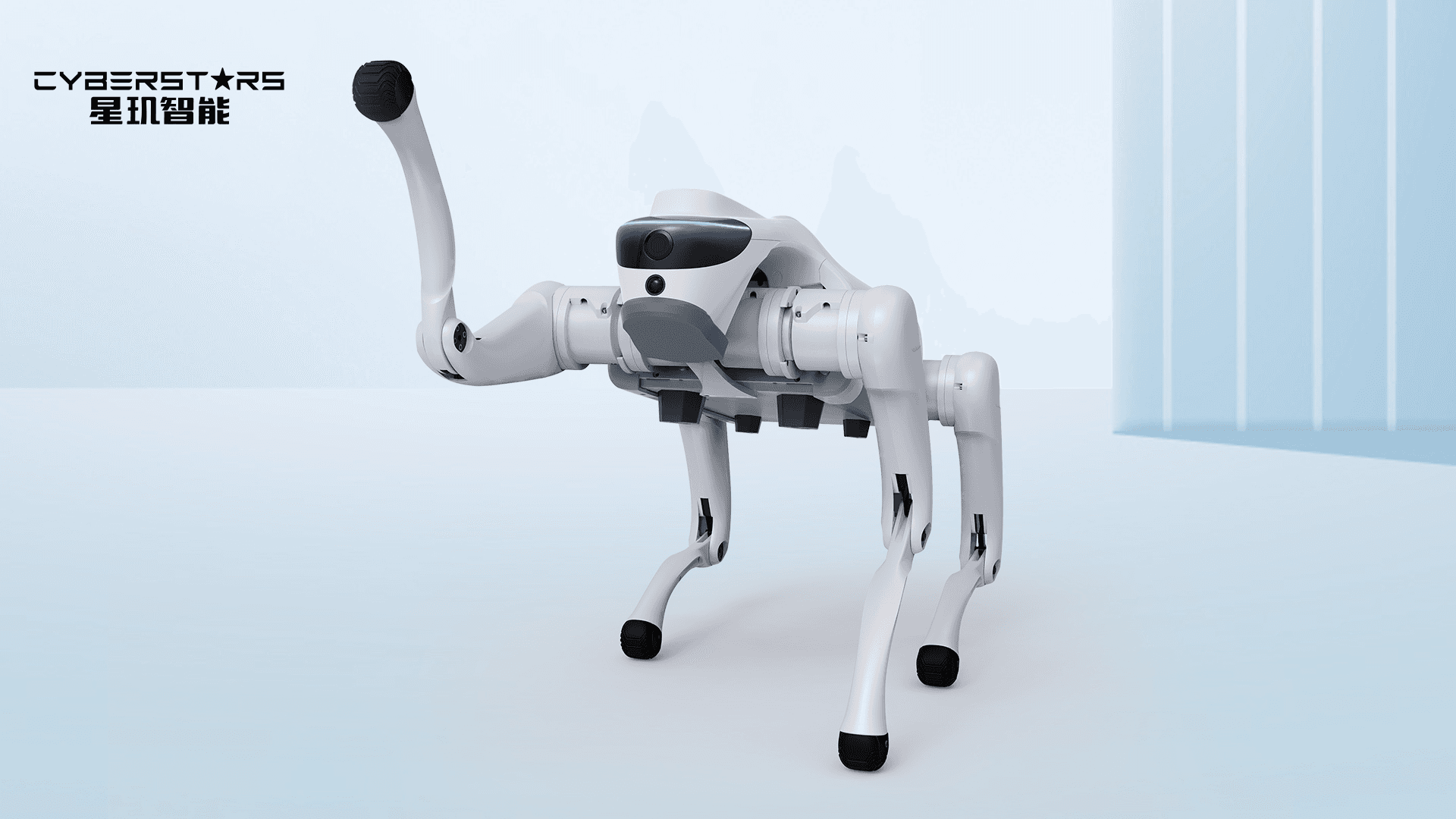

The CYBERSTARS CYBER 1 is an industrial-grade quadruped robot designed for research and development of autonomous systems in areas such as human-robot interaction (HRI), SLAM, and transportation. With its four legs and 12 degrees of freedom (DOF), this robot can adapt to complex and diverse terrains.

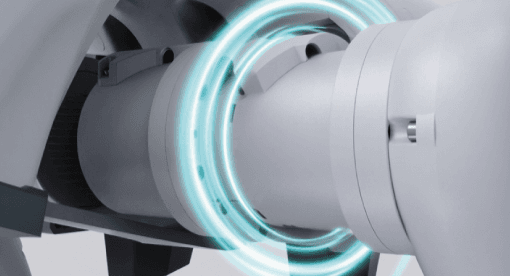

The CYBER 1 features a stable drive and intelligent power management system, enabling efficient movement with extended operating time. Additionally, its high-performance joint motors provide strong torque, allowing it to perform agile movements, jumps, and carry heavy payloads.
As it has high-level ingress protection, the CYBER 1 can operate reliably in various outdoor and industrial environments.
Pontos fortes
1.The CYBER1 quadruped robot boasts excellent perception capabilities with its dual camera and radar system: the front camera features 1920*1080 video transmission resolution and a 120° ultra-wide-angle design, delivering clearer images and providing high-quality visual support for visual perception, while the front and rear ultrasonic radars offer a maximum effective detection range of 4.5 meters, which can accurately capture surrounding environment information, help achieve autonomous obstacle avoidance, and ensure movement safety.
It is equipped with a powerful drive system and large power output: the CYBER1 quadruped robot is fitted with a 4800mAh battery (28.8V/138.24Wh), and an optional 9600mAh (28.8V/276.48Wh) long-endurance version is available; it also adopts an automotive-grade BMS power management system, which further improves motor work efficiency and operational stability.

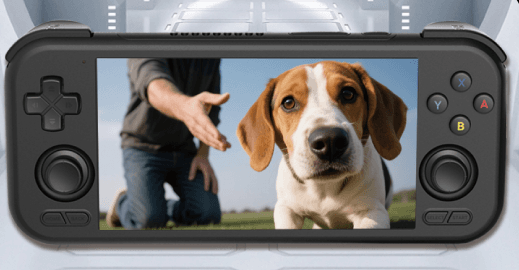

An optional screen remote controller is provided for the robot, which is lightweight and easy to use, supporting high-definition video transmission and ready to use right after power-on without the need to connect to a mobile phone, allowing users to focus more and enjoy the experience better; the remote controller is equipped with a 4.7-inch 750*1334 touch screen, a 5000mAh battery, with dimensions of 184.8mm*82.6mm*15.8mm and a weight of 261g.

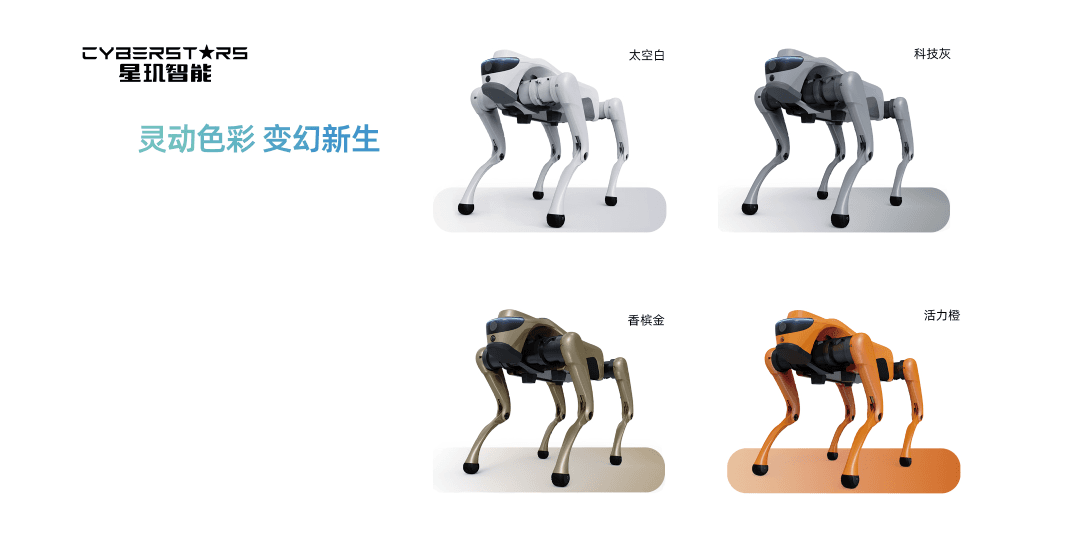

In terms of appearance, the CYBER1 offers colorful styling with four color options available, which can meet the needs of different application scenarios and bring more choices for users.
