Multiflexible parts sorting - with VarioShaker and Epson SCARA robot

Multflexible low cost solution for part sorting

The VarioShaker 270 component separator offers a multiflexible application for partial sorting. A special feature of the system is that several types of components can be separated by the system. This means that a new system does not have to be designed and built for each component. It creates a fully automated process that requires little operator supervision. In addition, the system can operate autonomously for several hours, making it suitable for multi-shift operation. The fully integrated solution through defined interfaces allows the machine to be expanded for subsequent processes. Thus, the system remains flexible and adapts to any production and component.

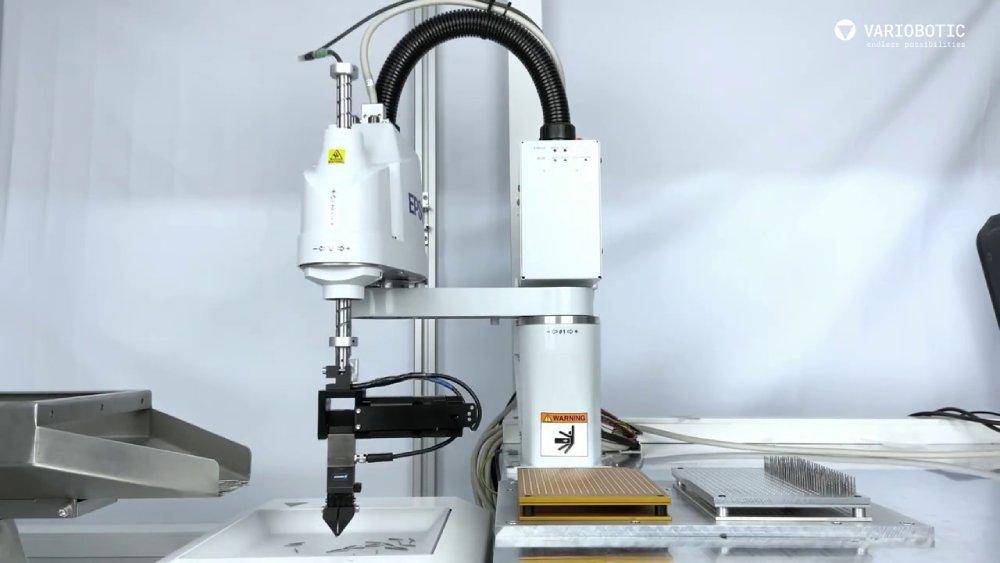

In the first step, pins that are unsorted as bulk material pass through a vibratory hopper onto the VarioShaker 270, which separates the components. After the components have been identified by an image processing system in the correct position, the SCARA robot can pick up the parts through the swivel axis and sort them into a finished pallet. The finished pallet is now ready for further processing.
