SCHUNK - Magnetic gripper EMH, size: RP 036, electric

SCHUNK GmbH & Co. KG
Dispositivos terminais
‌
Art. n.º: RBTX-SNK-0076
EMH is an electropermanent magnetic gripper for energy-efficient handling of ferromagnetic workpieces. It ensures reliable holding force retention in the event of an emergency stop. Its compact design, low weight and high forces make it reliable and highly flexible.
Prazo de envio habitual: 3 semanas
‌
Max Gripping force
530
N
Weight
1
kg

Pontos fortes

https://a.storyblok.com/f/298593/fc10cdc61d/rbtx_tool_icon_v1_lil_-svg.svg

Technical details

  • Holding force [N] - 530

  • Magnetic surface [cm²] - 6.08

  • Payload with horizontal magnetic surface [kg] - 8.5

  • Payload with vertical magnetic surface [kg] - 3.5

  • Module temperature increase at 5 activations/minute [°C] - 10

  • Module temperature increase at 15 activations/minute [°C] - 25

  • Activation time [ms] - 300

  • Min. ambient temperature [°C] - 5

  • Max. Ambient temperature [°C] - 50

  • Dead weight [kg] - 1

  • Protection class IP - 52

  • Rated voltage [V] - 24

  • Voltage type - DC

  • Max. Current Power [A] - 3.1

  • Max. Current Power [A] - 0.15

  • Controller electronics - integrated

https://a.storyblok.com/f/298593/4427329c88/2023-07-27_16_41_47-fwebp-b1440__1315__1440__und_9_weitere_seiten_-_gesch__ftlich_____microsoft_edge.jpg

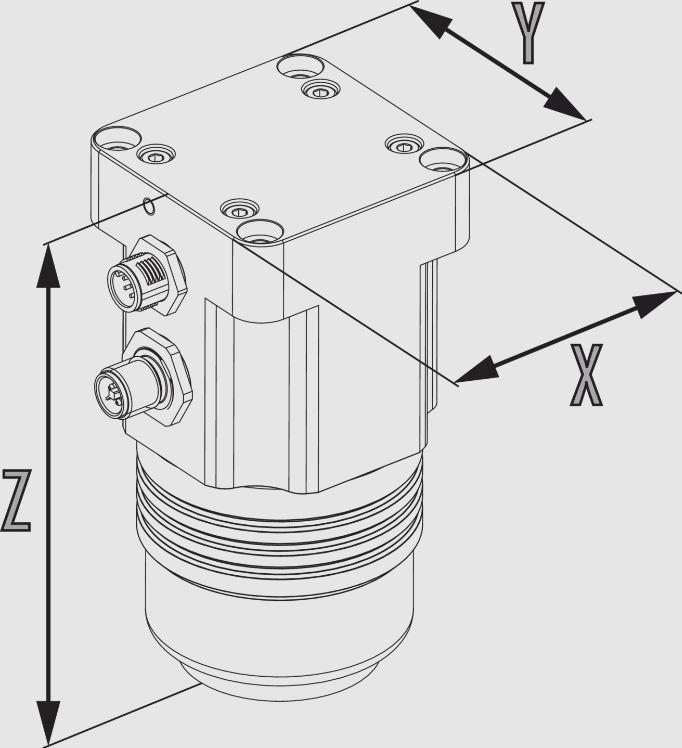

Dimensions

https://a.storyblok.com/f/298593/d39b511f8e/bild1.svg

General notes on the series

Soluções low-cost construídas com a RBTX

Transferências

CAD file
Operating manual
EMH-RP 036 Magnetic field evaluation document
Vendor link
